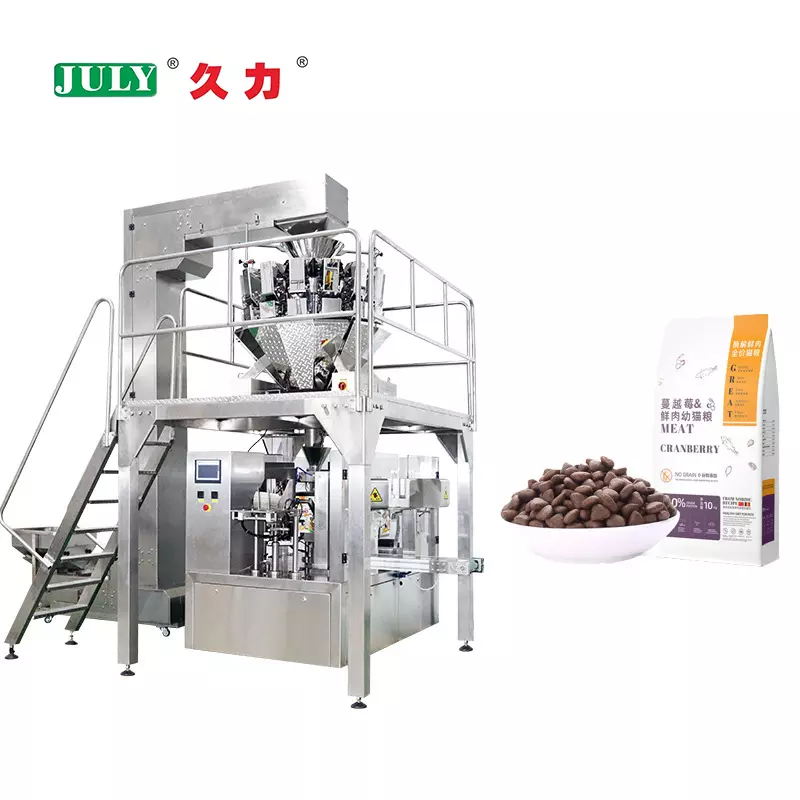

Premade pouch machines for retail-ready stand-up packaging
Your printed pouch carries the shelf impact. The machine's job is to open it cleanly, fill it accurately and seal it flat — cycle after cycle, without wrinkling the print.
Built for pouches you buy printed, not film you print
Premade pouch packing moves the printing and pouch making upstream, where a converter can deliver finished pouches with high-quality graphics, zippers or spouts. The packing machine then only has to do three things exceptionally well: pick the pouch, open it, and seal it without contaminating the seal area.
A rotary platform with eight stations gives each step its own position and its own time budget. Opening uses vacuum cups plus a mechanical pre-open, which matters for gusseted stand-up pouches where the gusset tends to close on itself. Filling is servo-driven, and a short settling pause before sealing lets powders and liquids level out.
Gripper pitch is adjustable within a range so that one machine can run several pouch widths. Changeover is a matter of swapping the magazine, adjusting the gripper pitch and recalling a recipe.
Typical configuration shown. Final specification is confirmed against your product, pack format and output target before the order is locked.
Key features
- Eight-station rotary platform
Dedicated positions for pick, code, open, fill, settle, seal, cool and discharge.
- Vacuum plus mechanical opening
Reliable opening of gusseted stand-up and doypack pouches, including zipper types.
- Servo filling modules
Liquid, paste, powder and granule fillers on the same platform.
- Adjustable gripper pitch
Run multiple pouch widths on one machine with a short changeover.
- Seal-area protection
Product-level control and anti-drip nozzles keep the seal zone clean for a reliable weld.
Typical specification range
The values below describe the standard build envelope. Final figures depend on your product and pack format — confirmed during the sample trial.
| Output | 20 – 60 pouches per minute (station dependent) |
|---|---|
| Pouch width | 70 – 220 mm |
| Pouch height | 100 – 320 mm |
| Fill range | 50 – 2000 g / ml |
| Stations | 8 (expandable with extra sealing or cooling) |
| Pouch types | Stand-up, doypack, flat, zipper, spout, retort |
| Sealing | Heat seal, double seal, or ultrasonic on request |
| Filling accuracy | ±1% of target weight |
| Control | PLC + 10" colour HMI, recipe memory |
| Air supply | 0.6 – 0.8 MPa, dry and filtered |
| Power supply | 380 V, 50/60 Hz, three phase |
| Machine dimensions | Approx. 3200 × 1800 × 1900 mm |
Please confirm voltage, plug standard and certification requirements for your market when requesting a quotation.
Where this machine earns its place
Stand-up pouches with zipper for resealable retail packs.
Doypack formats with high fill weights and strong seals.
Spout and handle pouches for liquid household products.
Retort-capable pouch sealing for shelf-stable meals.
Related equipment
Discuss your productActual models from our factory
Real models with factory price ranges and specification data. All machines are built to order; MOQ is 1 set and standard delivery is about 15 days.
Price ranges are indicative factory quotations and vary with configuration, output and options. Ask us for a firm quotation against your product samples.
Send us your pouch specification
Pouch type, dimensions, fill weight and target output are enough for us to recommend a station configuration.
